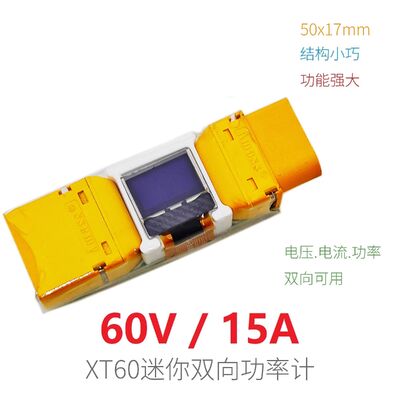

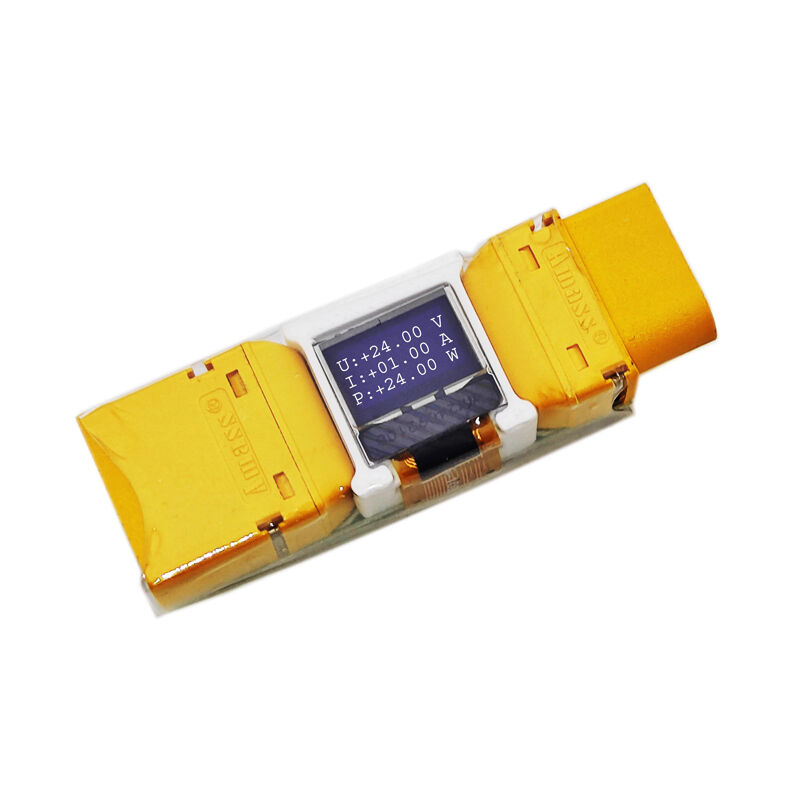

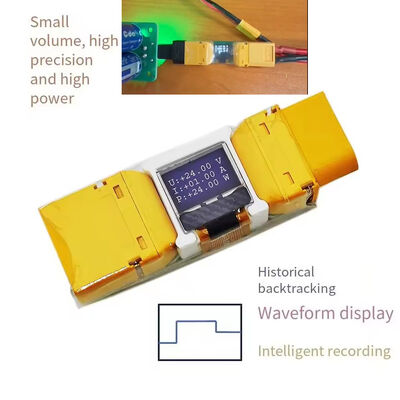

XT60 Male Female Charge Bridge Connector with Bidirectional Power Meter Lithium Battery Voltage Current Display

* Bidirectional Current Detection: This power meter is capable of detecting bidirectional currents up to 15A, making it for ideal for a variety of applications requiring precise current monitoring.

* High-Precision Measurement: Utilizing advanced sensing technology, it accurately measures voltage, current, power, and energy, reliable data for your energy management needs.

* Maximum Value Recording: The device can record maximum voltage and current values, enabling users to track peak performance and make informed decisions based on historical data.
* Intelligent Data Recall: This power meter easily recalls historical data and power-on counts, allowing you to review previous measurements and analyze trends over time.

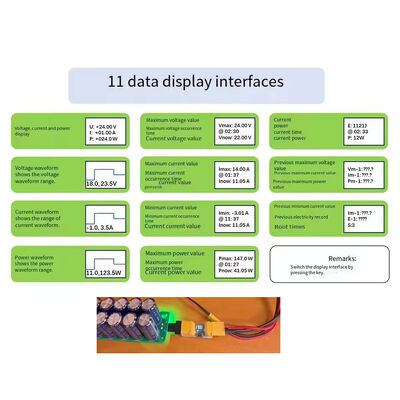

* Dynamic Waveform Display: Featuring a clear waveform display, it allows for real-time visual monitoring of electric

size: 50x17x14mm

Color: As shown

Specifications: for XT60 male/female, for XT30 male/female

for XT60: Battery Support: 2-12S Li-ion

Voltage Detection Range: 5-60V

Current Detection Range: ±15A

Detection Accuracy: 0.1V/0.1A

Screen: 0.42-inch 72x40 resolution for OLED

for XT30: Connector Specifications: for XT30 male/female

Battery Support: 2-6S Li-ion

Voltage Detection Range: 5-30V

Current Detection Range: ±10A

Detection Accuracy: 0.1V/0.1A

Dimensions: Approximately 45x16.5x8.5mm
